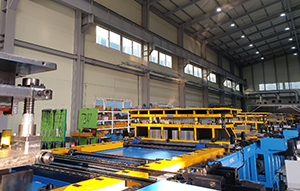

  • sheet metal Line
  • sheet metal Line
  • Bearing Presser
  • Side EPS packing

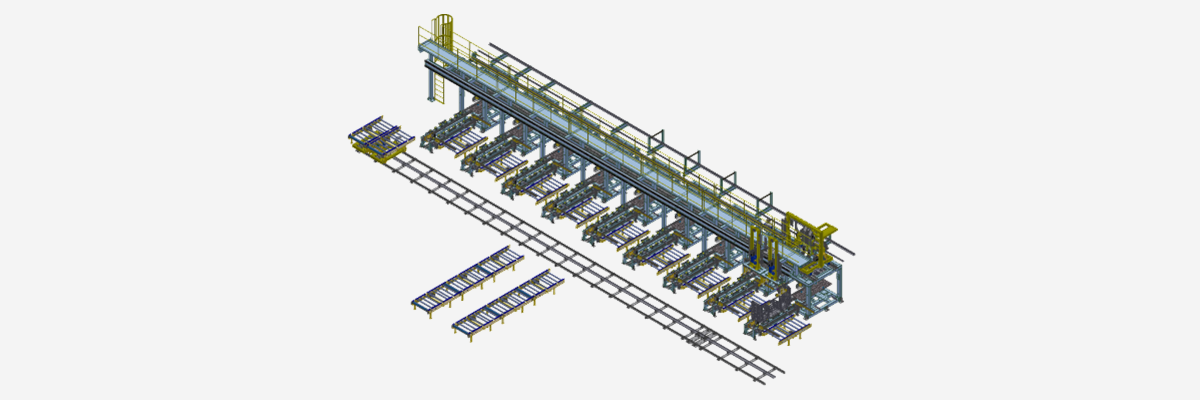

Refrigerator - Precision Fixture
Type Application method
Production method Face-Up
Production Model SBS, 2door
Service Time 45sec
Cycle Time 15sec
Up/Down Hyd 'System (individual or composite)
Side Wall Left / right individual operation possible Automatic (Servo Motor)
Change of model Separate device configuration / Full automatic
Injection method Individual Mix head or 1MixHead / 6 Fixture
Refrigerator - Rotary Fixture
Type Application method
Production method Face-Up
Production Model SBS, 2door
Service Time 45sec
Cycle Time 15sec
Up/Down Hyd 'System (individual or composite)
Side Wall Left / right individual operation possible Automatic (Servo Motor)
Change of model Separate device configuration / Full automatic
Injection method Individual Mix head or 1MixHead / 6 Fixture

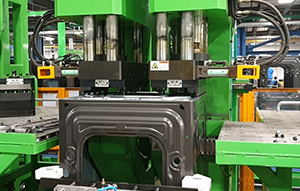

Refrigerator - Hybrid Fixture
Type Application method
Production method Face-Up
Production Model SBS, 2door
Service Time 45sec
Cycle Time 15sec
Up/Down Hyd 'System (individual or composite)
Side Wall Left / right individual operation possible Automatic (Servo Motor)
Change of model Separate device configuration / Full automatic
Injection method Individual Mix head or 1MixHead / 6 Fixture

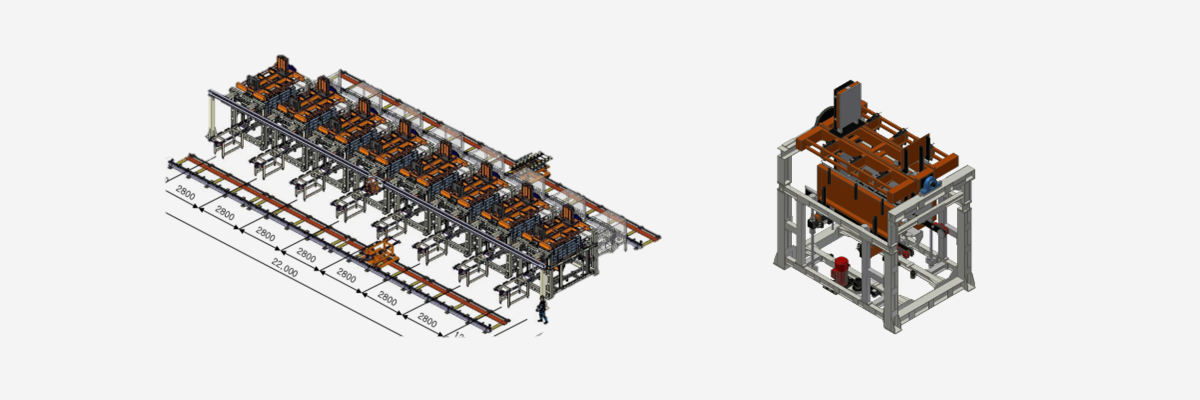

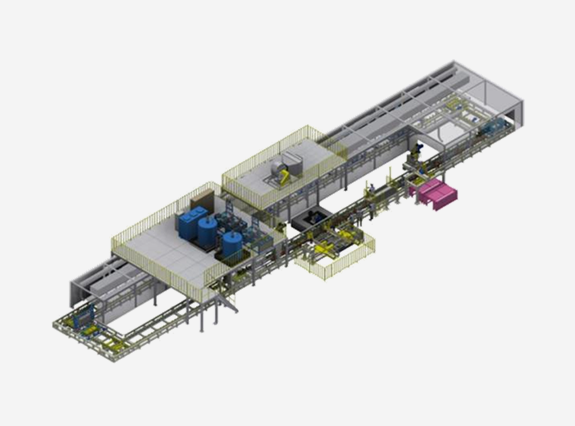

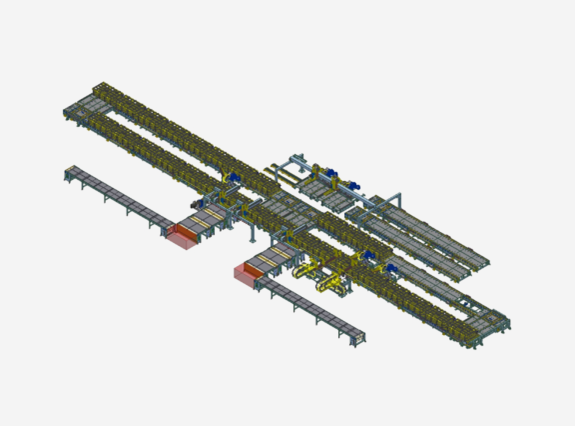

Refrigerator - Door P/U Foaming
  • Carousel Type
    Carousel Type Cabinet Face Down method of LinFlex Type Lay-out method of Face-up type applying Foam Line line and can be divided into preheating main working section and preheating section.
    The basic work process consists of Open, Unloading, Buffer (Manual Clean), Loading, N2 Injection, Injection and Close.
    Jig Fixture is a type that separates the upper part of the jig fixture. The upper part of the fixture is separated from the open section and transferred to the process. In the close section, the upper panel is transferred to the injection section. It is possible to use Jig Change in a separate Q.D.C section.
    The equipment configuration consists of Main Feeding M / C that feeds the entire jig at one time, a section that feeds the fixture top plate, and a Diverter section that feeds the jig to the back row, a conveyor section, and a Q.D.C section.
    The Q.D.C interval can be be 1: 1 replaced by applying the pre-standby buffer interval. An important option is a facility that can be configured for Face Down and Face Up Type equipment.
  • Hi Class Carousel Type
    The Carousel Type Door Foam Line is a lay-out of quadrilateral and is a facility exclusive for 4-door French Door from Side By Side.
    Cycle Time can be configured according to the option, but it can be configured 15sec. Generally, two, three, and four doors are produced in one mold carrier. The basic work process consists of Open, Unloading, Door Liner (plastic door) insertion, Out door insertion, Injection, Close.
    The equipment configuration consists of main feeding M / C that feeds the entire jig at one time in addition to the basic work process equipment, a Diverter section that feeds the jig to the downstream, a conveyor section and a Q.D.C section.
    Normally, the door liner (plastic door) and the out door section are equipped with manual and automatic options, In addition, it is a facility that can automatically replace 1: 1 mold carrier and inner jig when changing door jig.
    Injection usually consists of 2-head and 4-head. In case of 4-door French door, more than 4_head multi head is applied.

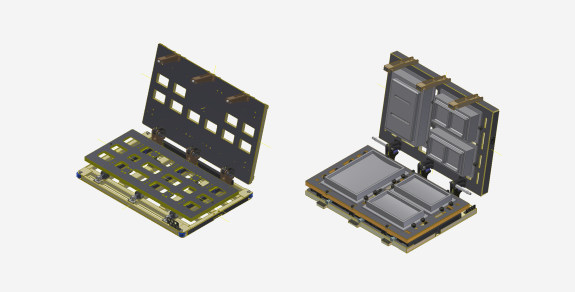

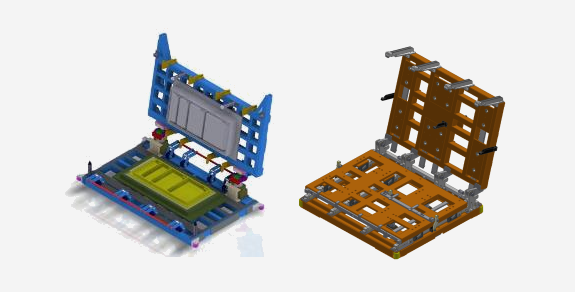

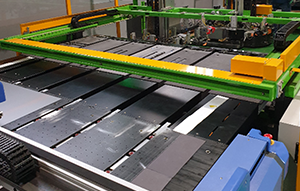

Mold Carrier

Mold Carrier is able to mount various types of jigs such as Compact, 4-Door French Door and Medical Refrigerator Door, and we also produce special type mold carrier to meet customer's request.
The basic mold carrier types are fixed mold carrier and height variable mold carrier, and optional Jig Auto Change function can be included. Mold Carrier Size is custom made.

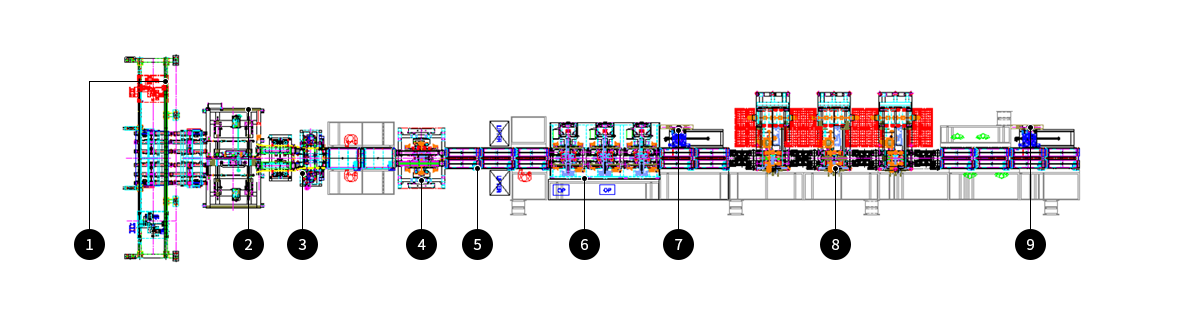

Washing machine - Cabinet
  • 1. SHEET FEEDER
  • 2. 4-P BENDER
  • 3. TURNER
  • 4. LOWER CAULKING
  • 5. SPRING CAULKING
  • 6. BOTTOM CAULKING

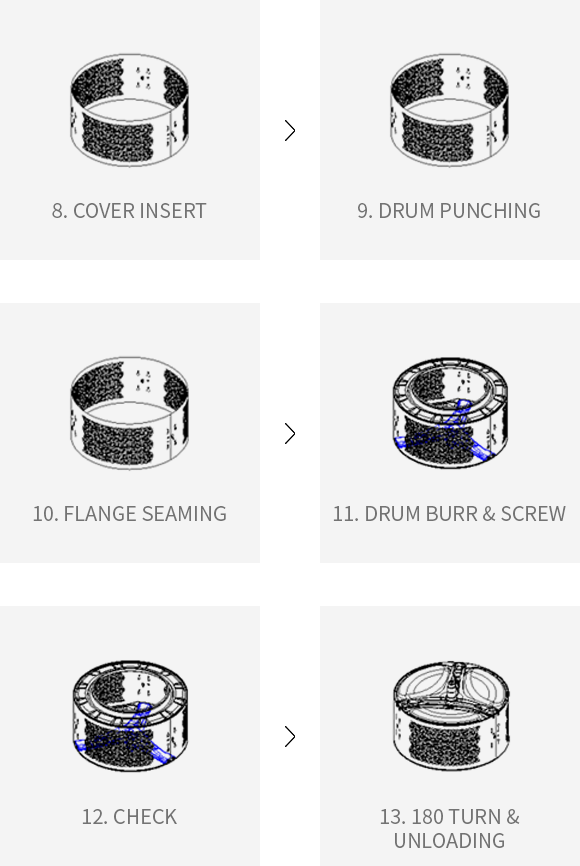

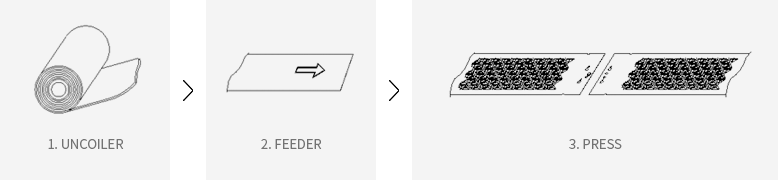

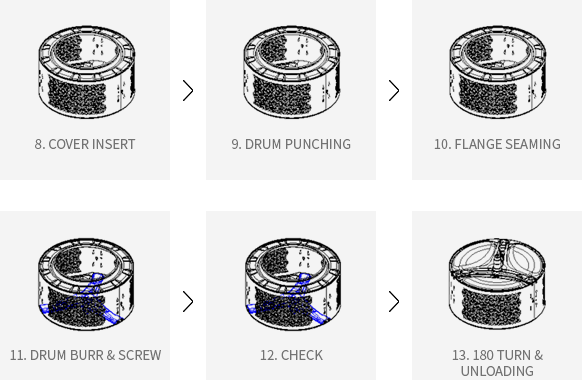

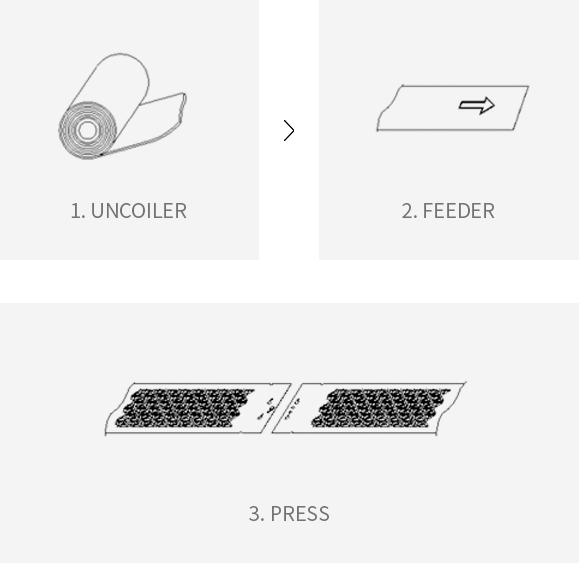

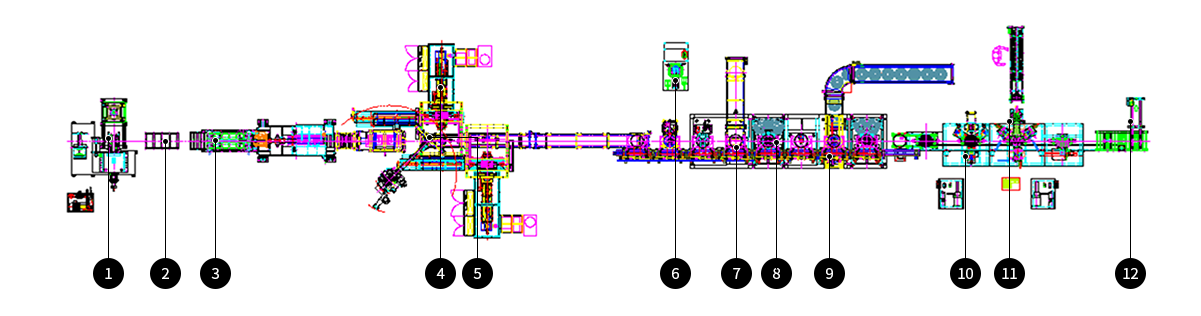

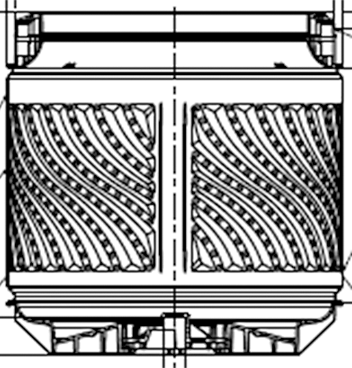

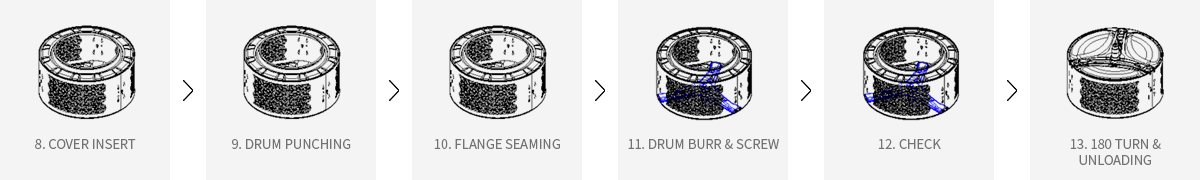

Washing machine – Spine Drum (Basket)
  • Manufactured and installed engine
    sub-assembly line
  • Manufactured and installed synchronized guided vehicle in muffler mounting process in automobile assembly Line
  • Manufactured and installed synchronized guided vehicle in muffler mounting process in automobile assembly LineOLT
  • Manufactured and installed synchronized guided vehicle in muffler mounting process in automobile assembly line
  • Manufactured and installed a remodeled EMS in the final 3 lines of automobile assembly line
  • Manufactured and installed suspension conveyor in automobile assembly line
  • Manufactured and installed CPAD injection line in automobile assembly line
  • Manufactured and installed remodeled BC EMS in car body line
  • Manufactured and installed EMS loading DROP LIFTER for car body
    line
  • Manufactured and installed remodeled SIDE EMS in car body
    line
  • engine assembly line
  • engine assembly line_2
  • Door module grease applying device
  • Vision inspection of finished glove box products
  • Door module assembly line
  • Regulator auto locking and inspection line
  • Skirt Heat Seal Tester
  • Armrest assembly line
  • CLEAVING AUTOMATION
  • CLEAVING AUTOMATION
